High Efficiency Moulded Dog Snacks Chewing Making Machine wiht
Model DM268
Introduction
The shapes of dog treats food are very lovely and it is a ideal
encouragement to dogs and cats while they learn a new action or do

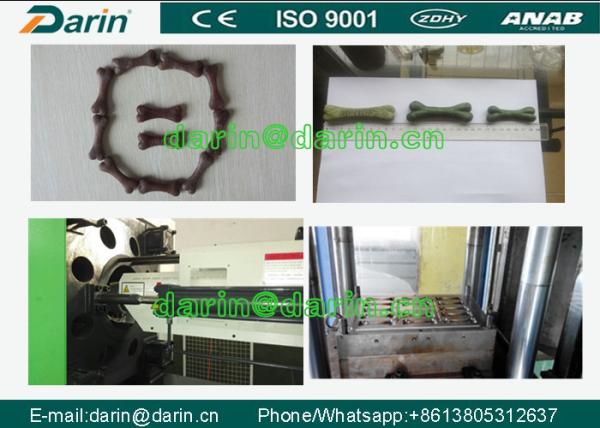

well in some exercises and games. With such machine, various shapes can be made, such as hedgehog,
crocodile, dog, bone, pork ears, barrel, etc.
Also, we can provide different recipes to meet various market
demands.
| Number | Features |
| 1 | SSR-solid state temperature controller. |
| 2 | Screw rotating speed can read-out. |
| 3 | Super low pressure clamping ensures security of user, and maintains
lifespan of machine efficiently. |
| 4 | Abnormal shot detection. |
| 5 | EL display of pressure, speed, time and distance for each motion. |
| 6 | Dust, oil proof and colorful touch switch control panel. |
| 7 | Screw cold start protection. |
| 8 | Pet Treats Injection Molding Machine equipped with 4 stages
injection, 3 stages holding pressure and 3 stages back pressure. |
| 9 | Output quantity and packaging quantity of pet toy chews food can
preset. |
| 10 | Clamping, injection and ejection (option), and carriage action
(option) by linear potentiometer. |
| 11 | Pet Treats Injection Molding Machine equipped with 4 stages
injection, 3 stages holding pressure and 3 stages back pressure. |
| 12 | Security code function to avoid missing data or careless changing. |
| 13 | Shut-down device with 100 presets mold data memory. |
Technical Parameters
| Item | Name of item | Unit | DM268 |
| Injection Unit | Screw Diameter | mm | 55 |
| Screw L/D Ratio | Ratio | 20 |
| Injection Volume (Theoretical) | cm | 601 |
| Injection Weight (PS) | g | 548 |
| Injection Pressure | Mpa | 185.1 |
| Injection Rate into Air | g/s | 223.7/276.1 |
| Injection Stroke | mm | 256 |
| Injection Speed | Mm/s | 95/116 |
| Screw Speed | rpm | 201/246 |
| Clamping Unit | Clamping Force | KN | 2600 |
| Clamping Stroke | mm | 550 |
| Space Between Tie-bars | mm×mm | 580 x 580 |
| Max. Mould Height | mm | 600 |
| Min. Mould Height | mm | 250 |
| Ejector Stroke | mm | 160 |
| Hydraulic Ejection | KN | 68 |
| Ejector Rob Quantity | pcs | 9 |
| Others | Max. Pump Pressure | Mpa | 17.5 |
| Pump Motor Power | kw | 22/30 |
| Heater Power | kw | 15.9 |
| Hopper Volume | L | 50 |
| Oil Pump Volume | L | 550 |
| Machine Weight | t | 8.5 |
| Mould Positioning Ring Diam | mm | 160 |
| Sphere Radius | mm | SR10 |
| Machine Dimension | m x m x m | 5.82 x 2 x 2 |
FAQ
1. Could we visit your factory to check the machine carefully and
closely?
You’re more than welcome to visit Darin, will provide machine test
running, face to face discussion and turnkey project design
solution.
2. Could you afford technician team to guide our installation and
commissioning?
Oversea commissioning service provided, our technician will help to
install the machine, and teach local workers about operation and
maintenance. Buyer should pay for the technician's round flight
ticket, accommodation and salary.
3. How long is your machine's guarantee time?
One year since the machine arrive your factory.
4. If some parts break after warranty, what should we do?
Darin supply full-life after sales service, whenever new parts
needed, we will help to supply new ones at reasonable price & in
shortest time.
5. If we show our workshop size, can you design layout for the
whole line?
Auto CAD layout will be provided as client’s workshop size.
6. What is the material of the machine?
Stainless steel, especially parts contacting with materials,
conforming to food grade.
Commissioning Service
1. We make accurate factory layout design according to customer’s
factory size; if the customer needed, we could make workshop design
with electricity power, water supply, gas power, material storage,
final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply
for the Visa to client’s country immediately; normally the vessel
needs 20-60 days to the required port, so we have enough time to
get the Visa. While the machines arrives your factory, our
engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and
adjust the processing line to realize normal production at shortest
time.
4. Our engineers have responsibility to train and teach the workers
how to operate, clean, maintain and repair all the machines, until
the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion
of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and
daily salary USD 100 are on client’s account.
