2cm 88kw Energy Cereal Bar Forming Machine

    Buy cheap 2cm 88kw Energy Cereal Bar Forming Machine from wholesalers

    Buy cheap 2cm 88kw Energy Cereal Bar Forming Machine from wholesalers
    • Buy cheap 2cm 88kw Energy Cereal Bar Forming Machine from wholesalers

    2cm 88kw Energy Cereal Bar Forming Machine

    Ask Lasest Price
    Brand Name : Darin
    Model Number : DRC-65
    Certification : CE Certificate
    Price : USD 28000~ USD 35000
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50 Sets per year
    Delivery Time : 45 working days after receiving the down payment
    • Product Details
    • Company Profile

    2cm 88kw Energy Cereal Bar Forming Machine


    Energy Cereal Bar Molding Machine Different Sizes And Shapes


    Introduction


    DRC-65 Cereal Bar Forming Line can produce all kinds of shapes of cereal bars with the raw material of rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.


    Working Procedures: Making pop-rice - Melting sugar - Mixing sugar with pop-rice - Forming cereal bar - Packing.


    Features


    1. The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc.


    2. Mechanical pressing & rubbing, does not hurt nuts, without waste.


    3.Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.


    4.Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.


    5. Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.


    6. Cooling conveyer can be customized as demand.


    Technical Parameters


    Output300kg/hr
    Power5.5kw
    Product max thickness2cm
    Mould size640 x 126mm
    Effecitive mould size540 x 126mm
    Weight1200kg
    Dimension5300 x 1000 x 1450mm

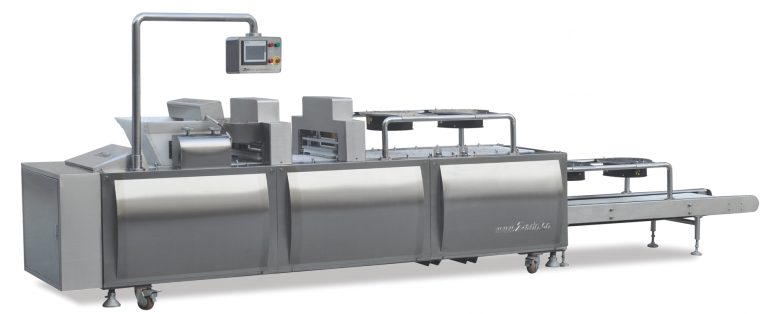

    Machine Picture



    Sample Picture



    Commissioning & After-sales Service


    1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.


    2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country

    immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.


    3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.


    4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.


    5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.


    6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
