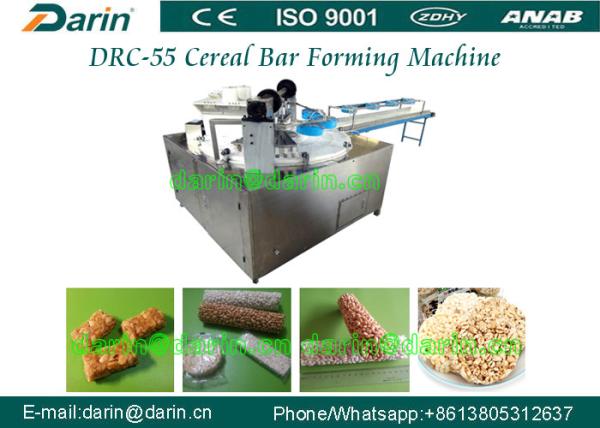

Customized cereal bar forming machine with CE ISO9001 Standard
Introduction
Cereal Bar Forming Machinery can produce all kinds of shapes of
cereal bar / peanuts bar with the raw material of rice, millet,
wheat, highland barley, peanuts, nuts, fagopyrum tataricm Gaertn,
maize, broomcorn, Chinese pearl barley, buckwheat, etc.
Features & Advantages
- The shapes can be round, cylindrical, square, semi round,
triangular and blossom, etc.
- Mechnical pressing & rubbing, does not hurt nuts, without waste.
- Mechnical driving, accuracy positioning, upper and nether moulds
tight fit, makes super cereal bar shaping.
- Using high performance frequency inverter, easy adjust speed,
high efficiency, it can produce 24-hour continuously.
- Moulds and hopper are both non-sticky processed. All the parts
may contacts food are
all non-toxic material, oil and high temperature resistance.
- Cooling conveyer can be customerized as demand.
Purpose:
Used for the rice,corn,wheat,barley,beans and other food’s puffing
Characteristics:
1. Easy operation,power saved,save times and high production.
2. With seismic thermometer and equipment tank gauge,automatic
measurement of the temperature and pressure within.
Our advantages for rice bar forming machine
| A | Save the artificial, a skilled can operative three machines |
| B | Shorter time, puffed corn takes only six minutes once |
| C | Energy savings: Unit finished lower energy than the ordinary type |
| D | Safe and convenient operation: four safety insurance, provincial
testing,reduce labor intensity, user-friendly design, easy
operation workers |
| E | More convenient to collect the material, the inclined position of
35 degrees to discharge the material collected |
| F | All-round shock, equipment and guide, gauge durable |
| G | Low noise design |
Technical Parameters
| Model | Capacity | Power | Dimension |
| DRC-55 | 3000-5000pcs/hr | 9kw | 12 x 4 x 2m |
| DRC-65 | 30000-50000pcs/hr | 15kw | 16 x 4 x 2m |
Technical Parameters
Model | Capacity | Power | Dimension |
DRC-55 | 3000-5000pcs/hr | 9kw | 12 x 4 x 2m |
DRC-65 | 30000-50000pcs/hr | 15kw | 16 x 4 x 2m |
Samples:
