Darin patented new style SUS304 DRC-65 Cereal bar making equipement
Introduction
DRC-65 Rice Bar Making Machinery can produce all kinds of shapes of
cereal bars with the raw material of rice, millet, wheat, highland
barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl
barley, buckwheat, etc.
Technical Parameters for Cereal Bar Forming Machine
| Output | 5000-30000pcs/hr |
| Power | 2.5kw |
| Product max thickness | 2cm |
| Mould size | 640 x 126mm |
| Effecitive mould size | 540 x 126mm |
| Weight | 1200kg |
| Dimension | 5300 x 965 x 1850mm |
Full information for Each Equipment as below:
1.Sandwich Pot (200L)
Characters:
Has large heating area, high thermal efficiency, even heating,
liquid material boiling, time is short, easy to control the heating
temperature etc..
Technical parameters:
Voltage:380V
Power:15kw
Volume:200L
Inner diameter of the boil:840mm
Outline dimension:905*990*1470mm
2.Mixer
Power:1.1kw
Voltage:380V/50HZ
Outline dimension:700*500*1200mm
Mix capacity:15KG/time

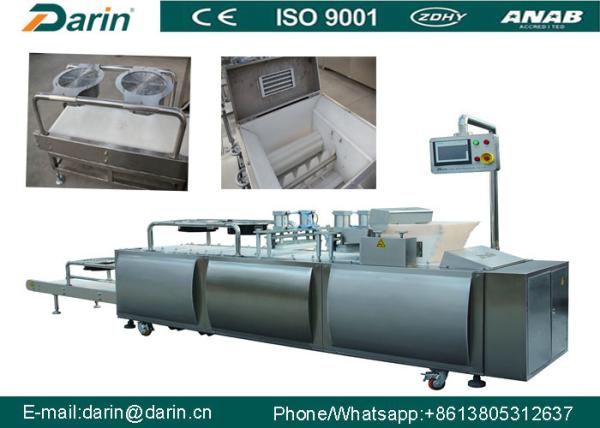

3.Full automatic cereal bar forming machine
This machine are suitable for flatting and cutting the muesli
bar.Easy to operation.
Characters:
1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and
convenient
Technical parameter:
Power:4kw
Voltage:380V/50Hz
Outline dimension:11800*1200*1200mm
Capacity:300kg/h
Automatic cutting ,Time saving, labor saving, economical and
convenient
If you need to change another width size, only change the cutter
shaft is ok
4.Horizontal packing machine with Date printer
This machine is suitable for packing long box Mihua Tang, Shaqima,
moon cake, biscuits, bread, rolls, pie, instant noodles, candy and
other foods.
Technical parameters of horizontal packing machine :
| Model | LSU-220 |
| Pack speed | 50~150 |
| Pack film width | ≤250 |
| Pack length | 90-220 |
| 150-300 |
| Can choose as your requirements |
| Power | 2.5 |
| Main motor power | 0.75 |
| Heating power | 1.8 |
| Weight of machine | 450 |
| Dimension | 3800*780*1500 |
| Noisy | ≤75 |
| Power | 220V 50HZ |
| Material | OPP PE PVC OPP/CPP PT/PE KOP/CPP |
Samples Show
