    Automatic Tray System Pet Food Production Line To Meat Strip Processing

    Ask Lasest Price
    Brand Name : Darin
    Model Number : DR-220
    Certification : CE ISO9001
    Price : USD
    Payment Terms : T/T, L/C, Western Union, D/A
    Supply Ability : 50 Sets per year
    Delivery Time : 45 working days after receiving the down payment
    • Product Details
    • Company Profile

    Automatic Tray System Pet Food Production Line To Meat Strip Processing


    Automatic Tray System Meat Strip Processing Line


    Food Grade Meat Strip Forming Machine With Auto Tray System Multi Pieces Saving Labor Cost


    New Patent Auto Meaty Stick Making Machine With Auto Tray Loader is new designed by Darin team, Full automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray`s dimension and automatically enter into tray, it is convenient for subsequent baking link.

    Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt.

    Darin auto meat strip machine was just installed in Taiwan client's factory, 32 pcs can be made one time, the capacity is able to reach 500kg/hr. If 16pcs, the capacity is 400-450kg/hr.


    Instruction


    DRT-65 Dog Meat Stick Machine is designed with auto tray system, which can supply the tray automatically to hold the sticks, saving labor cost greatly.


    Full automatic tray system can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity.
    Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing.
    Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.


    Parameter


    ModelDRT-65
    Capacity150-200kg/hr
    Air source0.5-.0.8 Mpa
    Air Comsumption90L/min
    Tray Dimension680x400mm
    Quantity of Placing Tray One Tim40pcs
    Power3.75kw
    Dimension9000X2900X1610mm
    Machine weight680kg

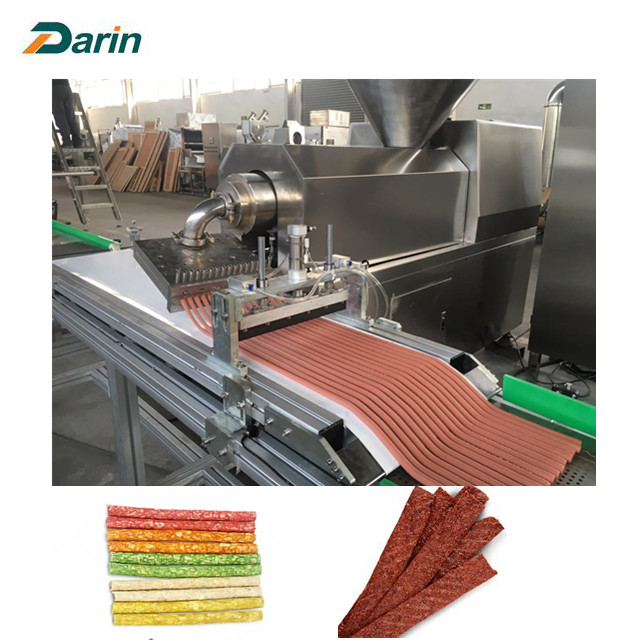

    Machine picture




    Quality Automatic Tray System Pet Food Production Line To Meat Strip Processing for sale
