Mini Granola Bar Forming Machine Cereal Bar Making Machine Energy
Bar Machine
Introduction
Mini Granola Bar Former can be used for producing rectangular shape
cereal bar.
- The pressing roller is made of food grade HMWHDPE material, more
healthy with anti-sticking function. The side of roller mark the
scale. Customer could accurately adjust the height of roller to
meet the different thickness product requirement.
- The useful width of cereal bar cutting machine is 170mm.
- Controlled by PLC with touch screen with friendly interface.
- Using high performance frequency inverter, easy adjust speed, high
efficiency, it can produce 24-hour continuously.
Raw Material
A wide range of ingredients can be used as raw material, like oats,
pop rice, peanuts, sesame, raisins etc. The binder can be sugar
syrup, dates paste, honey etc.
Shape
The bar shape is rectangular by pressing and cutting. The size is
adjustable.
Support Machinery
Support machinery can also be provided to work with the bar former
to be automatic line, like sugar melting cooking pan, chocolate
coating machine, auto sorting and packing machine etc.

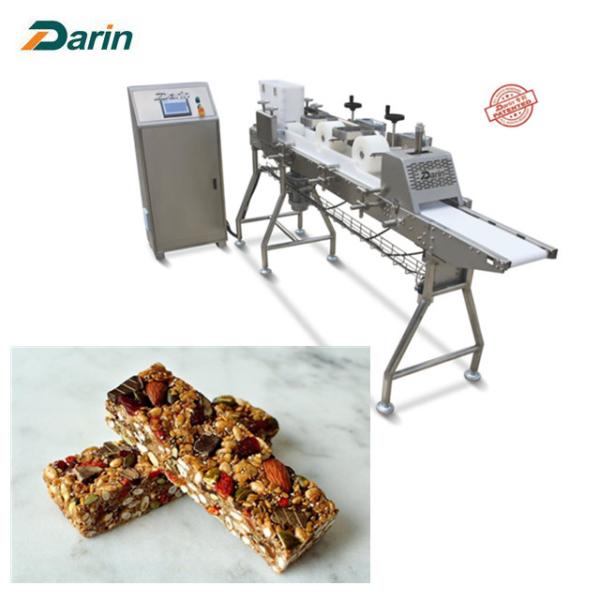

Machine Picture
Technical Parameter
| Machine | Mini Granola Bar Former |
| Power | 2.2kw |
| Material Hopper Size | 540 x 450 x 350mm |
| Hopper Volume | 8L |
| Conveying Belt Width | 180mm |
| Product width | 30-150mm |
| Product thickness | 10-30mm |
| Weight | 500kg |
| Dimension | 3000 x 600 x 1500mm |

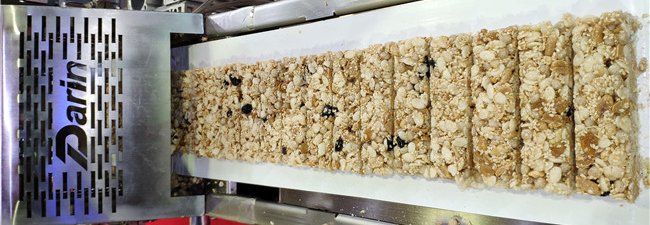

Sample picture

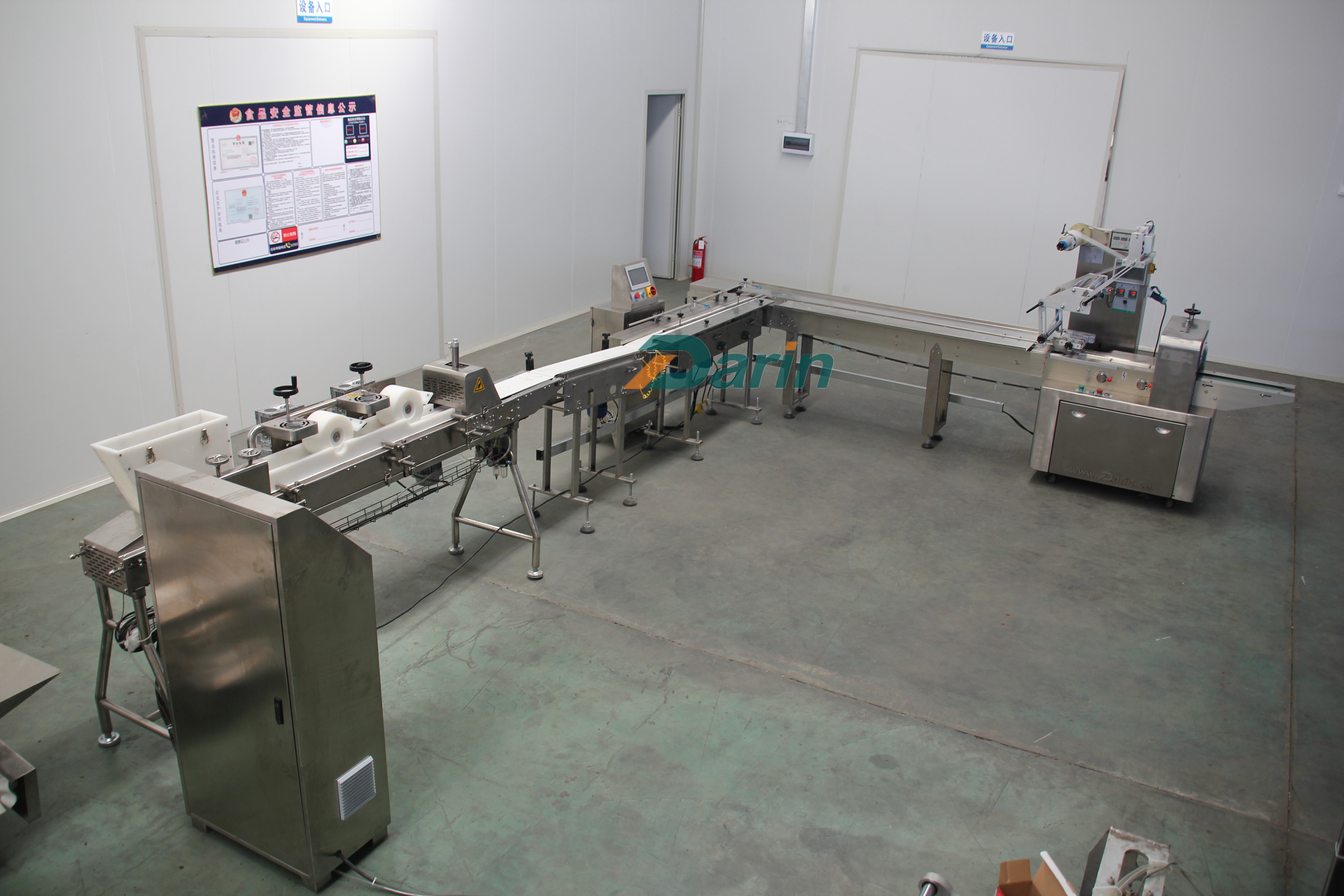

Mini Granola Bar Forming Line
The mini granola bar former can also work with auto sorting and
packing machine to be full automatic line. Support machinery can
also be provided like sugar melting cooking pan, rice puffer,
chocolate coating machine etc.
Service
1. We make accurate factory layout design according to customer’s
factory size; if the customer needed, we could make workshop design
with electricity power, water supply, gas power, material storage,
final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply
for the Visa to client’s country immediately; normally the vessel
needs 20-60 days to the required port, so we have enough time to
get the Visa. While the machines arrives your factory, our
engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and
adjust the processing line to realize normal production at shortest
time.
4. Our engineers have responsibility to train and teach the workers
how to operate, clean, maintain and repair all the machines, until
the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we
supply 1 year guarantee from the date of completion of
commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and
daily salary USD 100 are on client’s account.
