Description
Snack Food Production Line can use corn flour, wheat flour, rice
flour, soya bean meal, peanut meal etc to produce inflated snacks
and non-inflated pellets products by changing screws.Puff
Production Line consists of feeding system, extruding system,
cutting system, heating system, driving system, lubricating system,
water-cooling system and controlling system.
a. Raw Materials: adopts corn, rice, wheat, oat, barley etc as ingredients
b. Products: Variety shapes are available for ball, tube, stick, ring, fruit
loop, star, wheel and flower and heart shape by adjusting the mould
in the extruder
c. Capacity: 150kg/h, 240kg/h, 500kg/h
d. Flow chart: Mixing system---Extrusion system----Drying system---Flavoring
system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it
according to customers’ Local voltage according to different
countries
f. Machines Materials: All the machines are made by stainless steel, this line is with
reasonable design and with high automation; the screws are made by
alloy steel, with building block system structure and self-cleaning
function
g. Technical Parameters
| model | installed power | power consumption | output | size |
| DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
| DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
| DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
Service & Installation
a.) Consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's
factory to named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
e.) Provide 1 year complete warranty and life-time maintenance
service;
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or
LC at sight
3. Installation and commision: seller will send 1 technician to
buyer's factory, All expenses including visa, round trip tickets,
daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line

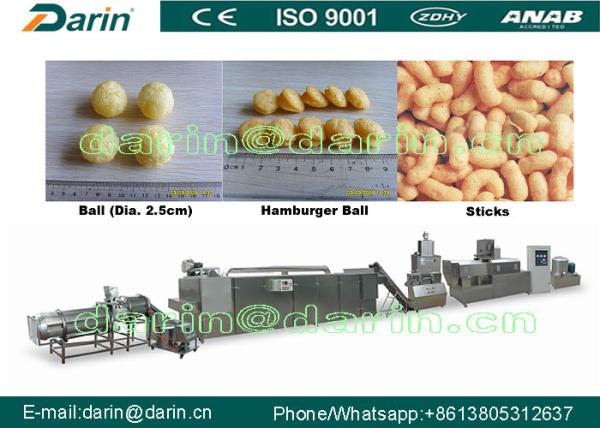

Machine &sample pictures:
