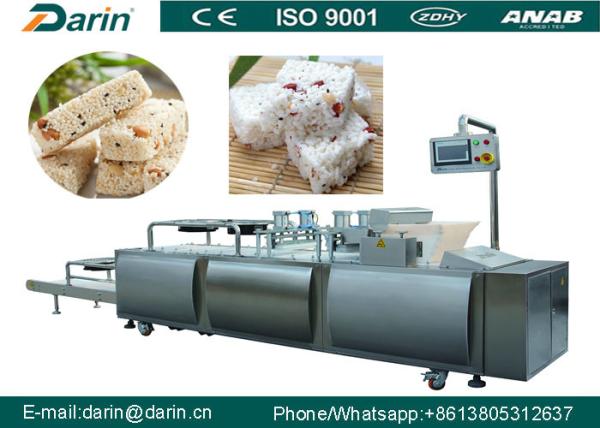

Puffed / baked Cereals ,sugar, syrup,sesame,peanut, honey bar
forming machine
Brief introduction of puffed rice bar forming machine :
1. The shapes can be round, cylindrical, square, semi round,
triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without
waste.
3.Mechanical driving, accuracy positioning, upper and nether moulds
tight fit, makes super cereal bar shaping.
4.Using high performance frequency inverter, easy adjust speed,
high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts
that contact food are all non-toxic material, oil and high
temperature resistance.
6. Cooling conveyor can be customized as demand.
| real Bar Forming Machine |  |
| Model NO: | DRC-65 |
| Mould size: | 640*126mm |
| Forming Area: | 509*173mm |
| Mould Quantity: | 36 pieces + 1 pressing mold + 1 demoulding mold |
| Speed: | <80p/min |
| Capacity: | 2Tons/8Hours |
| Dimensions: | 3600*1000*1500mm |
| Weight: | 1200KG |
| Mixer: | yes |
| Self-heating Function(Mixer): | yes |
| Easy Cleaning: | yes |
| Saving material: | YES |
| Automatic: | YES |
| Upside down ability (Mixer): | NO |
| Connect to the packaging machine: | YES |
| Saving work: | YES |
| Stainless Steel: | YES |
| Workers: | 2 |
| Clean with water | YES
|
Features & Advantages
- The shapes can be round, cylindrical, square, semi round,
triangular and blossom, etc.
- Mechnical pressing & rubbing, does not hurt nuts, without waste.
- Mechnical driving, accuracy positioning, upper and nether moulds
tight fit, makes super cereal bar shaping.
- Using high performance frequency inverter, easy adjust speed,
high efficiency, it can produce 24-hour continuously.
- Moulds and hopper are both non-sticky processed. All the parts
may contacts food are
all non-toxic material, oil and high temperature resistance.
- Cooling conveyer can be customerized as demand.
Technical Parameters
| Model | Capacity | Power | Dimension |
| DRC-65 | 300-400kg/hr | 10.8kw | 5.3 x 0.965 x 1.85m |
| DRC-75 | 400-600kg/hr | 15.2kw | 6.65 x 1.31 x 2m |
Purpose:
Used for the rice,corn,wheat,barley,beans and other food’s puffing
Characteristics:
1. Easy operation,power saved,save times and high production.
2. With seismic thermometer and equipment tank gauge,automatic
measurement of the temperature and pressure within.
Packaging&Delivery:
Packaging : International wooden case,also can be OEM.
Delivery :20 working days or according to the contract.
After sale services
----Internal customer :We can offer 1 year free door service ;
----Oversea customer :We can offer free training and send engineer to
offer service.
